| Item No | BSD100-DC-A | BSD100-DC-B | BSD100-DC-C |
| Wattage | 100W | 100W | 100W |
| Dimension | Φ300×187 mm | Φ300×187 mm | Φ300×187 mm |
| LED Brand | PHILIPS / OSRAM
SMD3030 119PCS |
PHILIPS / OSRAM
SMD3030 119PCS |
SAN’AN
SMD3030 119PCS |
| Driver Brand | MEANWELL | XJT/OURUN | XJT/OURUN |
| Waterproof | IP65 | IP65 | IP65 |
| Input Voltage | 100~277 VAC | 100~240 VAC | 100~240 VAC |
| Frequency | 47~63Hz | 47~63Hz | 47~63Hz |
| Power Factor | >0.96 | >0.96 | >0.96 |
| CRI | >82 | >80 | >80 |
| Luminous | 120 lm/w | 120 lm/w | 120 lm/w |
| Light Angle | PMMA Optical lens
60°/90° |
PMMA Optical lens
60°/90° |
PMMA Optical lens
60°/90° |
| Color Temp. | 6000K/4000K/3000K | 6000K/4000K/3000K | 6000K/4000K/3000K |
| Guarantee | 5 Years | 3 Years | 3 Years |
| Certification | UL TUV CE Rohs | CE Rohs | CE Rohs |
| Installation | Hook Mounted/Ceiling Mounted//Pipe | Hook Mounted/Ceiling Mounted//Pipe | Hook Mounted/Ceiling Mounted//Pipe |

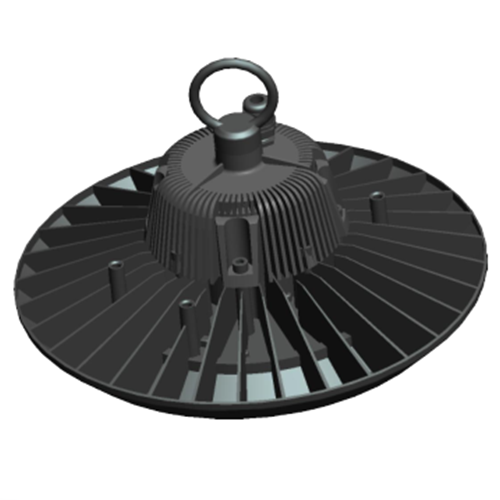

BSD100-DC-A/B/C
